Support Braces Style II
Designed for easily set into stretcher frames
We have different style of support braces(cross braces) design for stretcher frames.
( Support Braces Style I and Support Braces Style II )
SUPPORT BRACES STYLE II is designed for easily set into stretcher frames, it's compatible with our stretcher bars F3030 F3835 F3850 F5038 F6338.

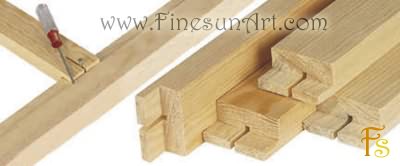

 From the picture you can see the support braces style II is using screwdriver to sep the braces on frame, because of this design you could set the braces after the stretcher bars seted to a frame.
Style II braces including 3 Kinds:
1. II-A: with no groove on the braces, so couldn't over lap with anther braces.
2. II-B: have one or two grooves on the back of braces for over lap with II-C braces.
3. II-C: have one or two grooves on the belly of braces for over lap with II-B braces.
| |
 |
|
 |
|
 |
|
| |
Braces II-A
in frame |
|
Braces II-B
and II-C |
|
II-B and II-C
in frame |
|
Remark:
II-B and II-C: II-B can't over lap II-B, II-C can't over lap II-C, II-B and II-C have to using together, for examples if a frame size 40 inch x 50 inch need 2 support braces make a cross in the middle, you will need a "40 inch II-B and 50 inch II-C"; or "50 inch II-B and 40 inch II-C"
Support braces' length: the support braces length is shorter than stretcher bars, for examples a 20 inch x 40 inch frame need set a 20 inch support braces, this braces not real 20 inch, it's will be shorter a bit for compatible with 20 inch stretcher bars. So when you make a order need support braces to comatible with 20 inch stretcher bar, just tell us you need 20 inch support braces, we will make the braces at suitable length.
|
